Product Introduction

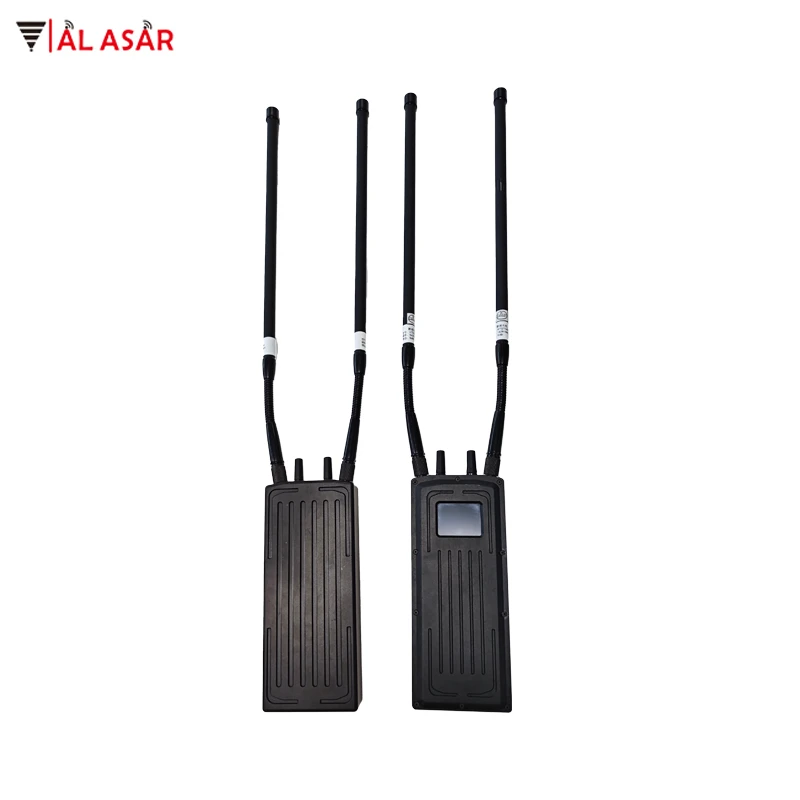

Handheld AD Hoc Mesh network Radio: Volume small, and light in weight, it is equipped with a built-in lithium battery and can be handheld or carried on the shoulder or back of individual combat.

Rapid network access and automatic multi-hop relay can provide multimedia communication services such as voice group calling, video backhaul, and relay transmission for individual, tactical teams, and tactical police dogs, achieving high-speed collaboration.

Beidou GPS positioning function also supports wifi coverage, and can be used with smart terminals with wifi function for various communications. The system adopts the same frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.

The robust Handheld AD Hoc Mesh network self-organizing network algorithm is embedded, and no central gateway is required. Any device can realize the self-organizing network function.

In practical applications, we can adopt mesh network design without worrying about network disconnection. It can provide wireless broadband communication for emergency response, anti-terrorism and explosion prevention, covert investigation, special operations, disaster relief, daily patrol and other "peace and war" tasks.

Handheld AD Hoc Mesh network The transmission distance can reach more than 5km in an open environment on the ground, 300~500m in an obstructed environment (depending on the obstruction environment), and more than 20km from the air to the ground.

Product Features

Anti-destruction: The failure of a single device will not affect the use of other devices in the entire system

2. Independent of base stations, efficient and fast to form a decentralized wireless broadband network

3. Support TCP/IP/UDP network protocols, full IP networking, easy to interconnect, compatible with IP-based voice, data, and video services

4. Support multi-hop relay, which can effectively expand the coverage radius of the wireless network

5. Support electromagnetic environment monitoring

6. Support remote parameter modification

7. Support one-click adjustment of bandwidth, frequency, power, mesh ID and other parameters

8. Support real-time channel monitoring, view spectrum signal strength, and support monitoring device connection status through topology maps

9. Support offline maps and online maps

Handheld Ad Hoc Radio

Specifications
