Product Introduction
AAT-H3L-D is a handheld drone detection device, through the depth analysis of drone signals and feature recognition, it can
accurately detect consumer-grade drones, FPV traversing aircraft within the effective range, especially for the identification of
typical industrial-grade drones and other targets, and it has the ability to identify the suspected signals of unknown drones, and
alarm them in time through vibration and sound. For some mainstream models, it can also accurately analyse their models, SN
codes, drone and flyer positions and other information, and support Remote-ID message parsing. Real-time analysis of first
person footage captured by FPV drones .
AAT-H3L-D adopts single person handheld design, compact size, easy to carry, and works automatically when it is switched
on, meanwhile, it is equipped with the functions of GNSS positioning and map GIS interaction, electromagnetic environment
spectrum detection. The device adopts 4-inch colour LCD screen, simple interface, easy to operate, can be operated with one
hand, highly adaptable to the outdoor environment. An optional direction finding antenna is available to extend the manual
direction finding function.
Key Features
1.Can parse Remote-ID information from drones
2.Identify multiple types of UAVs
3.GNSS positioning and map interaction
4.Ability to identify signals from unknown drones
5.Electromagnetic environment spectrum detection and display
6.Handheld portable IP55 protection

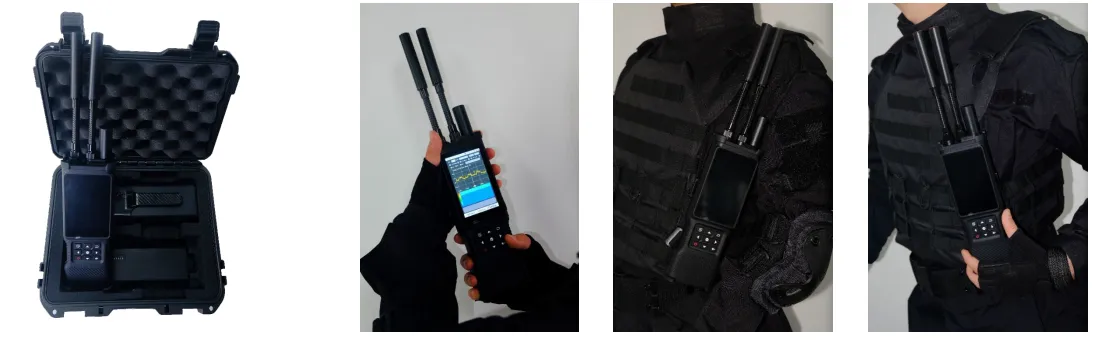

Carrying Method
AAT-H3L-Dcomes with a quick-release clip that can be used to carry on
the MOLLE Tactical Vest and can also be placed in the walkie-talkie side
bag

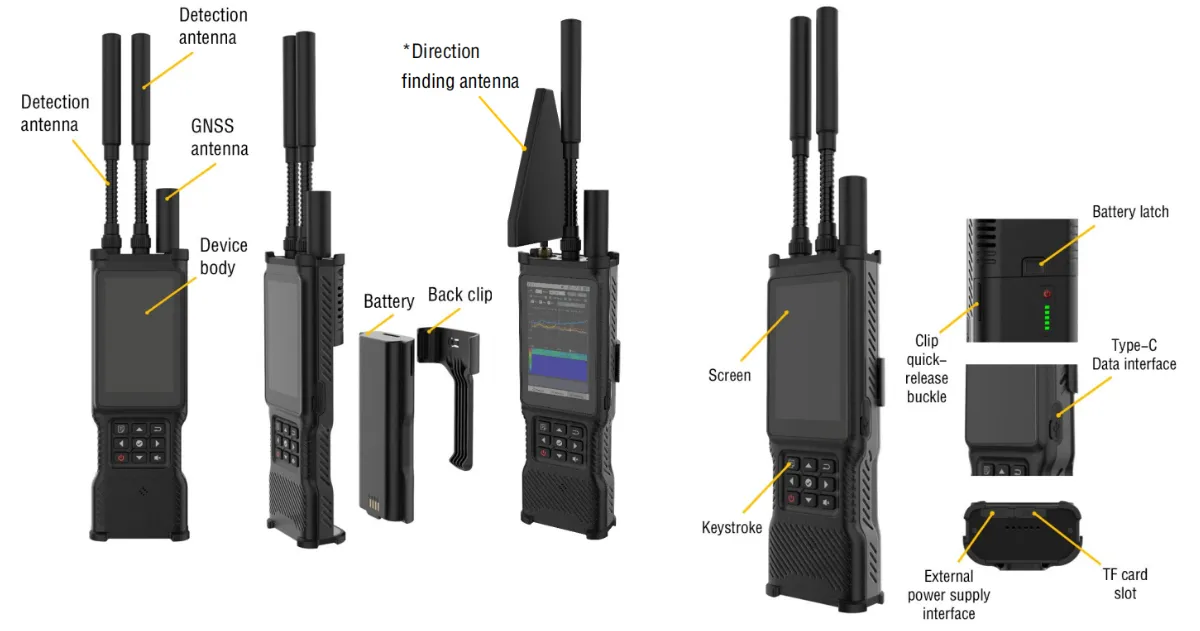

Device Composition Device Interface
*Optional direction finding antenna

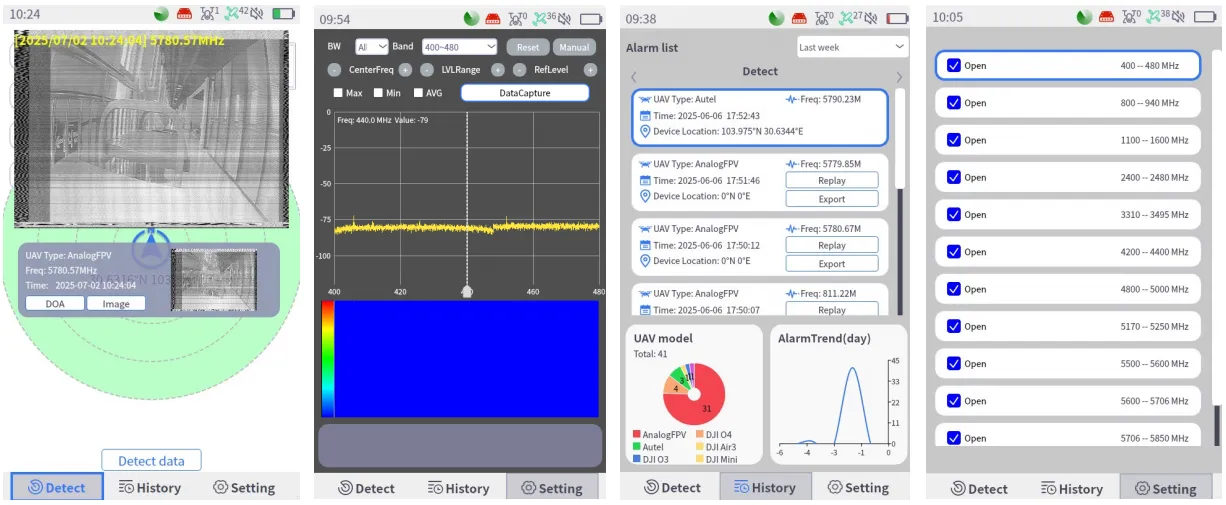

Software Interface
Specifications
|
Working mode
|
Radio monitoring and signal analysis (No signal transmission, strong concealment)
|
|
Detection frequency band
|
12 selectable signal bands by default
(Supports opening up other frequency bands in the 70-6000MHz range)
|
|
Detection range
|
1.5-2km (There are differences depending on the environment
and the target transmit power)
|
|
Direction finding accuracy
|
15°(Optional Direction Finding Antenna)
|
|
Device size
|
225*78*43mm(Antennas not included)
|
|
Device weight
|
≤900g
|
|
Endurance time
|
≥6h
|
|
Operating Temperature
|
-20°C to 50°C
|
|
Storage temperature
|
-40°C to 70°C
|
|
Protection class
|
IP55
|
Product Features
•Full-band drone detection: Support 70MHz-6000MHz full-band drone signal detection, default built-in 12 optional key
frequency bands, which can cover all kinds of drone signals, and also support user-defined increase in key frequency bands.
• Typical industrial-grade drone identification: In addition to common consumer-grade brand drones, FPV traversing aircraft,
etc., this device can also identify mainstream industrial-grade drones, including large-loaded multi-rotor drones, vertical take
off and landing composite wing drones and other targets. Real-time analysis of first-person footage captured by FPV drones .
• Unknown UAV suspected signal recognition: The device has a switch for suspected signal recognition function, after enabling
this function, the device can identify and warn of suspected UAV signals, which greatly improves the detection and
recognition sensitivity, and has a certain degree of unknown model recognition capability.
• Remote-ID message parsing: The device supports parsing the Remote-ID broadcast information , and it can obtain the
position of the drone and the pilot, unique SN code and other information in real time.
• Electromagnetic Environment Spectrum Detection: This device can also be used as a simple handheld spectrum detector,
which can detect and display the spectrum map and time-frequency map in real time, with basic functions such as zoom in
and zoom out, maximum and minimum hold.
• High-precision GPS Positioning and Map Interaction: This device can also be used as a high-precision GPS locator, which can
real-time locate and display the coordinates of the device and show them on the map interface, and the map GIS interface is
equipped with functions such as zooming, switching the map type (satellite or traffic map), and manually locating, etc, and it
also supports the user to import the offline map data by himself/herself.
• Convenient to use and fast interaction: the device adopts key interaction operation, the screen supports the use of bright
light environment, after the installation of the back clip can be matched with the MOLLE tactical buckle to use, can also be
extended to connect with the car bracket. The Type-C data port on the side of the device can communicate with third-party
systems via TCP/UDP protocol.
• Log statistics and multi-language interface: with a list of historical alarm information, model statistics, alarm trend statistics,
alarm logs can be stored and exported, with language settings, standard support for Chinese and English, Russian, Arabic and
other languages can be customised.
Application scenarios
Can be used for major event security, anti-terrorism in key areas, public security patrols, and other scenarios.
