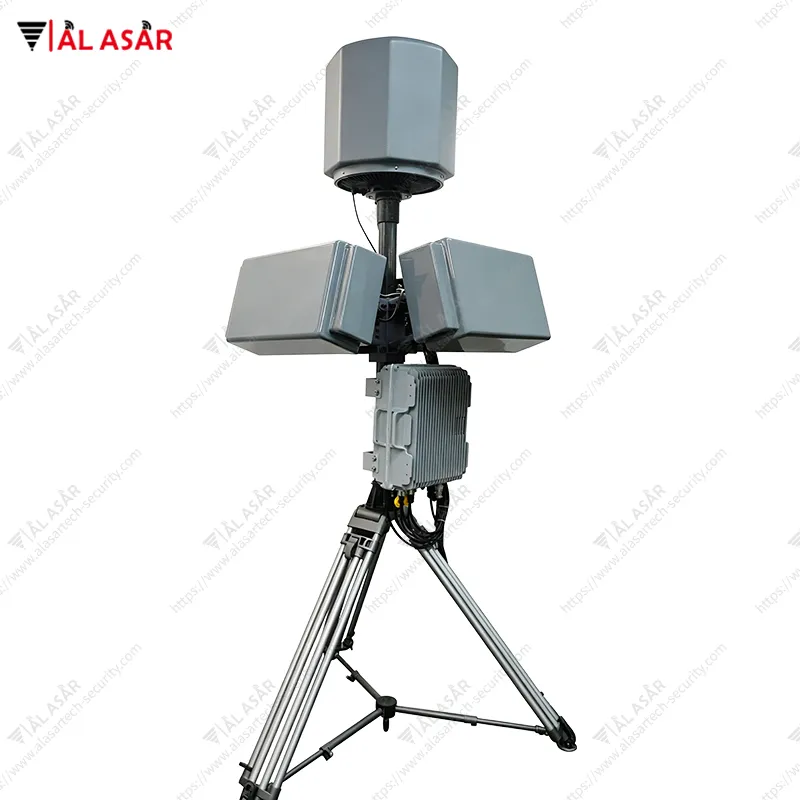

360° Anti-drone Detection And Counter System

Product Introduction

C-UAS Defense Sationary four-sided array 360° anti-drone detection and counter system is a fixed-deployment, four-sided array integrated low-altitude defense anti-drone system. Integrating passive radio frequency detection, omnidirectional direction finding and positioning, and multi-band precision strike, it is designed for 24/7 routine low-altitude security in key areas. It can quickly detect, identify, and deal with various "low, slow, and small" drone threats, building a low-altitude security barrier with no blind spots, high reliability, and easy maintenance.

Four-sided array 360° anti-drone detection and counter system features a deep integration of detection and countermeasures modules, establishing a complete closed-loop workflow encompassing "Detection - Identification - Warning - Response." The detection module consists of a passive RF automatic detection system, providing 360° omnidirectional coverage with zero blind spots. Equipped with high-performance detection antennas, it possesses capabilities for drone detection, direction finding, and precise localization. It supports advanced alerting, black/white-listing, and target identification; furthermore, it covers a wide range of drone models, maintains a low false alarm rate, integrates easily with various platforms, and reliably identifies multiple types of drone targets. The countermeasures module features a design with customizable frequencies and output power, comprehensively covering the mainstream 300 MHz to 6 GHz frequency bands used for drone remote control, video transmission, and navigation. It supports hot-swappable modules to facilitate technological iteration and functional expansion, thereby enabling the efficient suppression of drone signals as well as their deterrence, forced expulsion, or forced landing.

Four-sided array 360° anti-drone detection and counter systemfeatures an integrated structural design comprising a custom fiberglass upper housing, a central steel support column, and a robust, stable base. The fiberglass housing offers strong resistance to chemical corrosion, high wave transparency, and excellent dielectric properties; the steel column ensures stable support, while the base provides resistance against wind and seismic forces. Incorporating a proprietary, fully sealed, and waterproof design, the system guarantees long-term stable operation in harsh environments characterized by high temperatures, high humidity, salt spray, and sand and dust. The complete unit is easy to assemble and offers reliable structural support, combining rapid deployment capabilities with operational readiness to effectively meet the requirements for the rapid establishment of fixed defensive positions.



Product Features :

1. Intelligent Detection Module (Passive Detection)

Omnidirectional Coverage: Supports 360-degree, all-around passive RF detection; operates without emitting electromagnetic waves, ensuring high concealment.

Precise Identification: Features a built-in high-performance detection antenna, enabling drone detection, direction-finding, and precise localization capabilities.

Intelligent Management: Supports a blacklist/whitelist mechanism and identity recognition to distinguish between friendly and hostile drones; includes advanced early warning functions with an extremely low false alarm rate.

Broad Compatibility: Covers the majority of mainstream drone models currently on the market; features a high level of system integration, allowing for easy integration into existing security platforms.

2. Flexible Countermeasure Module (Directional Jamming)

Ultra-Wide Frequency Band: Operating frequency covers 300 MHz to 6 GHz, accommodating the vast majority of current and future frequency bands used for drone communication, navigation, and video transmission.

Modular Design: Employs hot-swappable module technology, allowing for on-demand customization of frequency and power settings. In the event of future technological iterations or the emergence of new threat frequency bands, the entire unit does not need to be replaced; instead, the system can be upgraded simply by swapping out specific modules, offering exceptional scalability and investment protection.



3. High-Reliability Structural Design

Weatherproof Enclosure: The upper detection and countermeasure units are housed in a custom fiberglass enclosure, featuring excellent chemical corrosion resistance, high wave transparency, and superior dielectric properties to ensure low-loss transmission of RF signals.



Robust Support: The middle section utilizes steel support columns, while the base is equipped with a thickened, heavy-duty foundation; this design provides exceptional wind and seismic resistance, enabling the system to withstand harsh natural environments.

Industrial-Grade Protection: Features a proprietary waterproof structural design, ensuring stable equipment operation under adverse conditions such as rain, snow, high humidity, and heavy dust.

Rapid Deployment: Employs a modular assembly design that ensures a secure mount while facilitating quick and easy disassembly; this design effectively balances the requirements for both fixed-site surveillance and rapid operational response capabilities.





Product Parameters

Detection frequency	30MHz-6GHz
Drones Coverage	The system covers all mainstream drone brands currently on the market-including DIY builds, FPV racing drones, and more-with a library of over 900 models that is updated in real-time. It features a one-touch whitelist function, ensuring that the detection of whitelisted targets does not trigger an alarm; furthermore, blacklists and whitelists are permanently stored and remain intact regardless of device power cycles.
Detection Rate	≧ 95%
Detection Time	<3s, 20–30 times per minute
Detection Range	1–10 km (Varies depending on line-of-sight conditions and the specific target drone model)
Detection Angle	Omnidirectional 360°
Positioning Accuracy	≤10m(RMS)
Positioning Method	TDOA Multi-Station Network Positioning
Operating Temperature	-25~+85℃
Protection Class	IP65
Power supply	AC 100-240V,50/60Hz
Weight	10kg
Precise Identification	Leveraging CRPC technology, it precisely identifies distinct drones-even those of the same brand, model, and frequency band-and identifies their unique airframe IDs.
Unattended	Upon activating fully autonomous mobile defense, the system enters an unattended mode, performing autonomous reconnaissance and strikes in conjunction with a remote server.
TDOA Network Positioning	Multiple devices are deployed in a mesh configuration, utilizing CRPC+TDOA networking and positioning technology to achieve precise, localized positioning and defense.

Targeted Strike Parameters

Channel	Interference(MHz)	RF power (W)
900M	840-930	100
1.6G	1550-1620	100
2.4G	2400-2485	100
2.4G	2400-2485	100
5.2G	5150-5350	100
5.8G	5725-5850	100
5.8G	5725-5850	100



Number of Bands	7 groups
Signal Source	Analog
Weight	13kg*4
Operating Voltage	24-28V
Operating Temperature	-20~70℃
Interference Activated	＜3s
Functional Protection	Temperature Control Protection, Reflection Protection
Jamming Frequency	900M,1.6G,2.4G,5.2G,5.8G
Jamming Power	100W(900M),100W(1.6G),100W(2.4G),100W(5.2G),100W(5.8G)
Jamming distance	5km+(In an environment with an unobstructed line of sight and drone models)



Basic Parameters

Whole device Dimensions	1240*1240*2650mm (Includes tripod)
Total Weight	≤100kg (Includes tripod)
Device Color	Gray
Construction Materials	Fiberglass, Aluminum Alloy
Application Methods	Fixed-type
Power Supply Method	AC 220V
Total Machine Current	12A (Full-load operation)
Total System Power Consumption	2850W*4 (Running at full load)
Communication Protocol	TCP Protocol, RS-485 Protocol
Communication Interface	RJ45
Antenna Type	Jamming Antennas: 4-Panel High-Gain Directional Array Antennas Detection Antennas: 5 High-Gain Fiberglass Omnidirectional Antennas
Antenna Dimensions	Directional Jamming Antenna: 260 × 230 × 52 mm Omnidirectional Detection Antenna: 200 × 20 mm
Antenna Gain	Directional jamming Antenna:6dBi(900M),6dBi(1.6G),11dBi(2.4G),14dBi(5.2G),14dBi(5.8G)
Directional jaming Radiation Angle	Jamming Angle (Horizontal Beamwidth)：90°/65°/65°/65°/65°±5 Jamming Angle (Vertical Lobe)：80°/30°/30°/15°/15°±5
Jamming distance	3-5km+(Open-field of Sight)
Temperature/Humidity	-20℃-+50℃/≤80%
System Reliability	The MTBF shall be no less than 1,000 hours.
System Response Time	No more than 30 seconds (time from power-on to normal system operation)
Companion Software	Drone Defense System



Appliaction:

Distinguished by its core strengths of high reliability, omnidirectional coverage, modular upgradability, and rapid response capabilities, this product is ideally suited for fixed-site applications requiring continuous low-altitude protection-including military installations, government agencies, airports, nuclear power plants, correctional facilities, large-scale venues, critical transportation hubs, and border control zones. It serves as the standardized, primary equipment for ensuring low-altitude security and defense in critical areas.

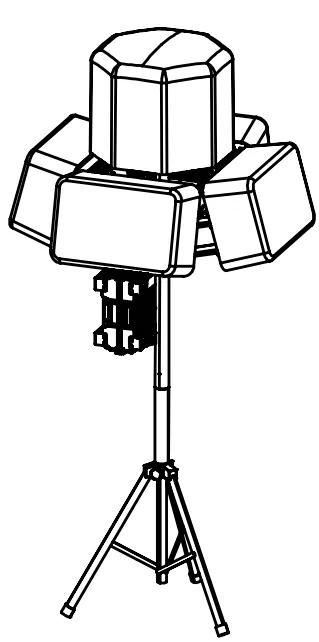

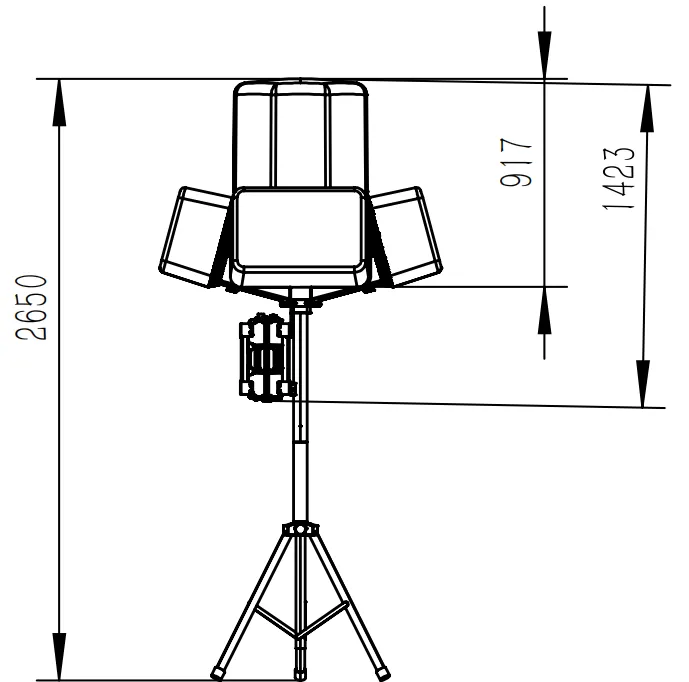

Dimensions Drawing(mm)

Dimension	Top view
Side View	Side View

Packing list

Product	Quantity	Dimension	Picture
Host Detection	1	483*430mm (Diameter × Height)
Targeted Couner Host	1	609*409*230mm (Length × Width × Height)
Control Cabinet	1	393*334*173mm (Length × Width × Height)
AC Power Cable	6	1.8m
RJ45 Cable	2	3m
9-Core Aviation Control Cable	5	2m
Steel Tripod	1	805*2050mm (Length × Height)



Complete Unit and Accessories Description

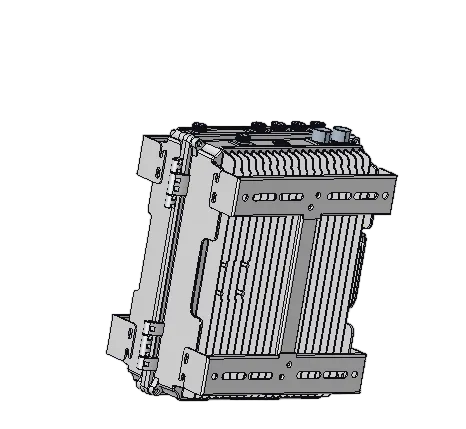

1.Detector Host Interface Description

(1) Main Power Switch (Device Startup Switch)

(2) AC 220V Power Inlet (Device Power Supply Port)

(3) 9-Pin Aviation Connector (Control Cable)

(4) RJ45 Network Interface (LAN) × 2



2.Targeted Counter Host Interface Description
