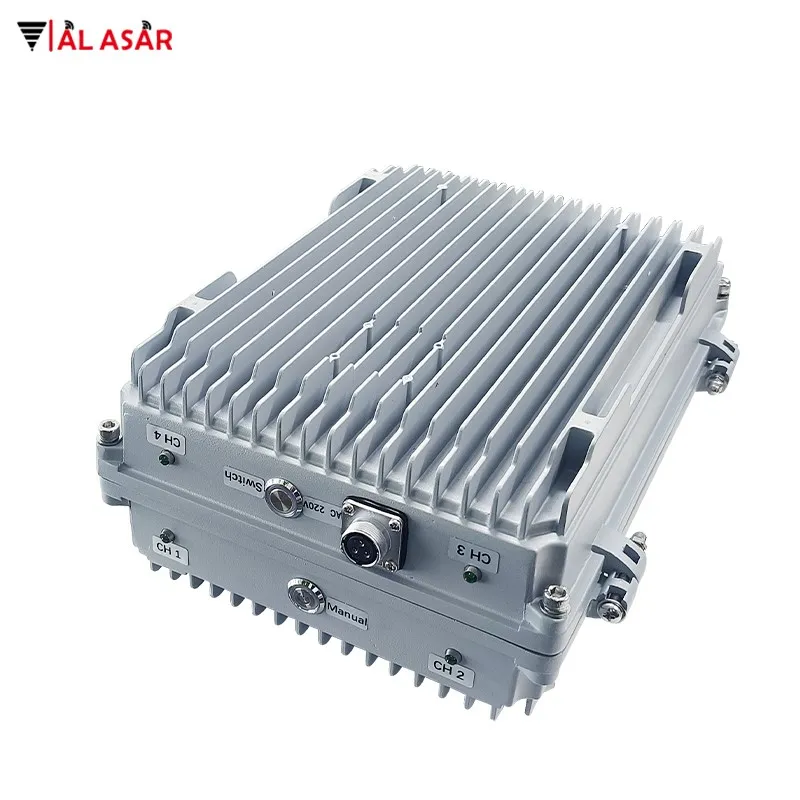

Drone Frequency Detection And Jamming Device

Product Overview

When drones are active in farm airspace, anti-drone jammer will target the communication and navigation frequency bands commonly used by drones, namely the 2.4G, 5.2G, 5.8G frequency bands and GPS/GNSS positioning frequency bands, and emit powerful and precise interference signals. In the 2.4G and 5.8G frequency bands, which are commonly used for remote control and image transmission of drones, the interference signals emitted by dronejammer will cover and block the transmission of control commands between the drone and the remote controller, as well as the image transmission signals of the drone sending real-time images back to the operator, causing the drone to lose effective control from the ground and unable to fly according to preset instructions. ​

For the 5.2G frequency band, some high-end drones may perform data transmission or communication enhancement in this frequency band, and the drone frequency blocker can also interfere with its signals to further ensure the interruption of the drone communication link. As for the GPS/GNSS frequency band, the interference signals emitted by the drone frequency blocker will disrupt the drone's reception of satellite positioning signals, making it unable to accurately obtain its own location information and lose its positioning and navigation capabilities. Once a drone loses its positioning and communication support, it will usually perform automatic return, hover or forced landing operations based on its own safety mechanism, and will be forcibly controlled and unable to continue to fly freely in the farm airspace, thus ensuring the safety and order of the farm.

Product Features

With 360˚ Detection and jamming antennas.

Dual-mode operation for flexible response: The device supports both "automatic mode" and "manual mode.

Automatic Mode : The system autonomously completes the entire process of signal detection, identification, and adaptive interference.

Manual Mode : The operator can independently activate or deactivate four preset interference frequency bands with a single button press.

Cut off the connection between drones and remote controls, remote control seize up

Remote control couldn't receive the picture and video by aerial photo.

Drone could not be location, The Drone interception Jammer mandatory making drone land or flight returned.

Easy to installation and maintain

Drone frequency blocker Power Amplifiers protection design ensures the working reliability of the device.

Technical Specifications:

Effective jamming range: jamming radius 300 to1000 m,(depending on the the environment signal strength);

Power supply: 220V AC or 24V DC

Consumption:89W

Continuous working hours: 24 *7 hours working (AC 220V);

Waterproof Level:IP66

Antennas type: 360 degrees Omnidirectional antenna

Host Dimension: 35*25*15cm Host Net Weight: 6kg;

Host Packing size: 40*30*18cm Antenna and accessories packing size：65*14*11cm

Gross Wight: 12kg

Operating Temp: -20ºC - +50ºC Humidity: 5% - 95%

Applications:

This type of knapsack mobile signal Jammer, portable with built-in high capacity battery, is especially applicable to meeting halls, infantry, military security forces, SWAT team, bomb squad, anti-terrorist units, anti-drug units, anti-riot force, the EOD team, checkpoints, hostage negotiations, border control, etc.

Note:All Bomb jammer, IED jammer, RF Signal Jammer and RCIED jammer, including cell phone jammer and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
