High Power Adjustable CDMA/GSM Dcs 3G 4G LTE/Wimax 5g WiFi Cell Phone Signal Jammer

In a certain frequency range, the mobile phone and the base station are connected by radio waves, and the data and sound transmission are completed with a certain baud rate and modulation method. The jammer scans from the low-end frequency of the forward channel to the high-end at a certain speed during operation. This scanning speed can cause garbled interference in the message signal received by the mobile phone, and the mobile phone cannot detect the normal data sent from the base station, so that the mobile phone cannot establish a connection with the base station. The mobile phone is manifested as a search network, no signal, no service system and other phenomena.

Some prisoners through illegality secretly transport mobile phone , in the prison are calling, SMS, obtaining information, threatening witnesses, Even the formation of gangs and organizations jailbreak and so on, because of this, in prison and other prison places to install mobile phone signal jammer system has reached urgency.

Product Feature

Cell phone jammer anti-interference,high efficiency, High accuracy, high-reliability, flexible, signal processing technology.

Using ultrahigh frequency boardband jamming technology.

Effective power (Channel power) high, and interference radius big

Valid subsection, only interference downlink, not cause interference to the base station.

RJ 45 IP Remote Monitoring System and 24*7hours monitiong

Police signal jammer only jamming the mobile phone signal and does not affect the normal operation of other electronic devices.

Ultra-low radiation, safety and environmental protection, no adverse effects on human health.

Jamming signal types: 5G, 4G, 3G (TD/WCDMA/CDMA2000), GSM, CDMA, DCS, can add or change signal types: GPS, Wi-Fi, Bluetooth, etc.

Output channel: six channel output, each channel of the smart shield can be individually adjusted power (gear adjustment)

Remote control: remotely control and manage several smart jammers through the main control software

Product Specificaiton

Effective shielding CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, 2.4GWIFI, 5.8G wifi, 3G WCDMA, 4G LTE,5G VHF,UHF, LOJACK ect, wireless signal. (Optional)

Effective jamming distance diameter: 120-500M ,(depending on the environment signal strength), The better choose directional antenna, shileding effective more better.

Power Supply: AC 220V

Power Consumption:1000W

Working: 24*7hours ongoing working.

Remote Control: RJ 45

Antenna: High Gain Directional Panel Antennas or Omni Antennas

Operating Temp: -25ºC - +60ºC

Humidity: 30%-95%

Net Weight: 65kgs;

Dimension:730(L)*450(W)*320(H)mm

Packing size:830(L)*565(W)*435(H)mm

Accessoris: Power cable,RF Cable antenna, RJ connector, wall-mounted expansion bolt.

Application:

Prisons and other large sensitive locations such as military or governmental compounds. It can also use in Oil and Gas Storage Facilities and fields, Security Services, Military Units, Secret Services, Museums, Border Patrol and Drug Enforcement, Customs, etc.

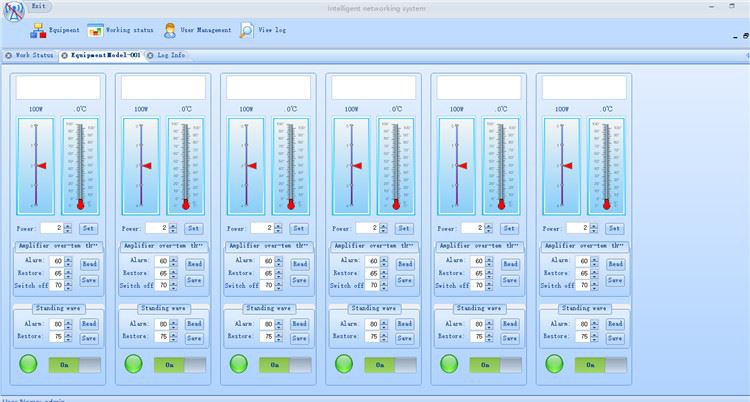

Jammer Monitoring Software Platform Introduction:

The Jammer Monitoring Software Platform allows customers to keep a query or control all Jammers accessed to the Internet, and all the alarm information jammers real-time feedback to the customer, so that customers can stay at home to have all information of jammers running, and adjust the control parameters of the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.

The platform enables real-time display of all Jammers’ output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.

This platform also allows you to change the login page photo and upload your own logo by yourself.
