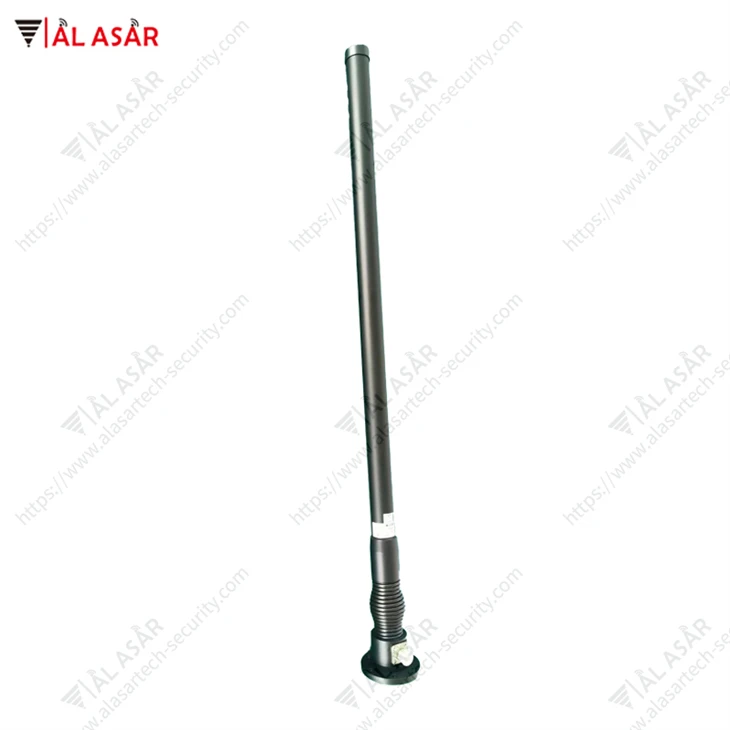

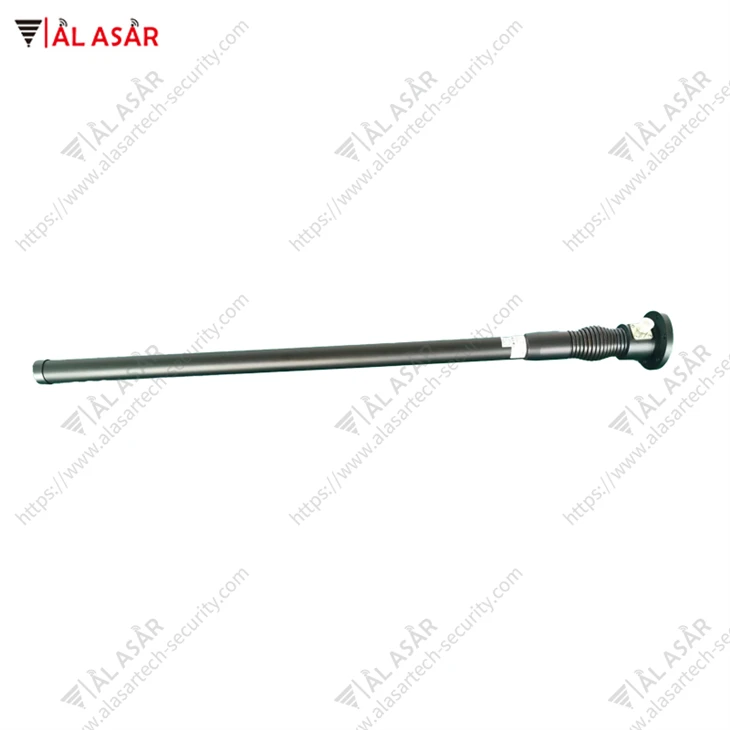

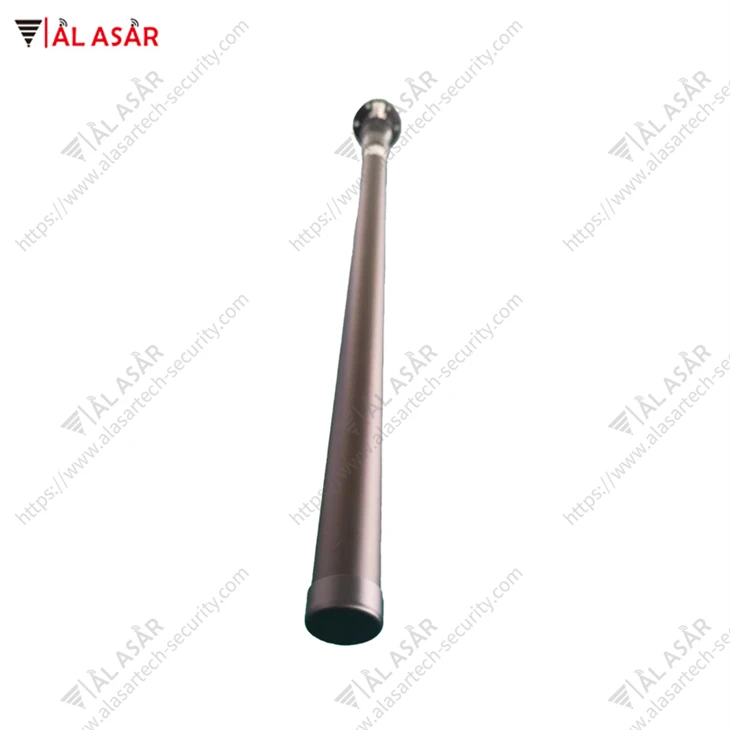

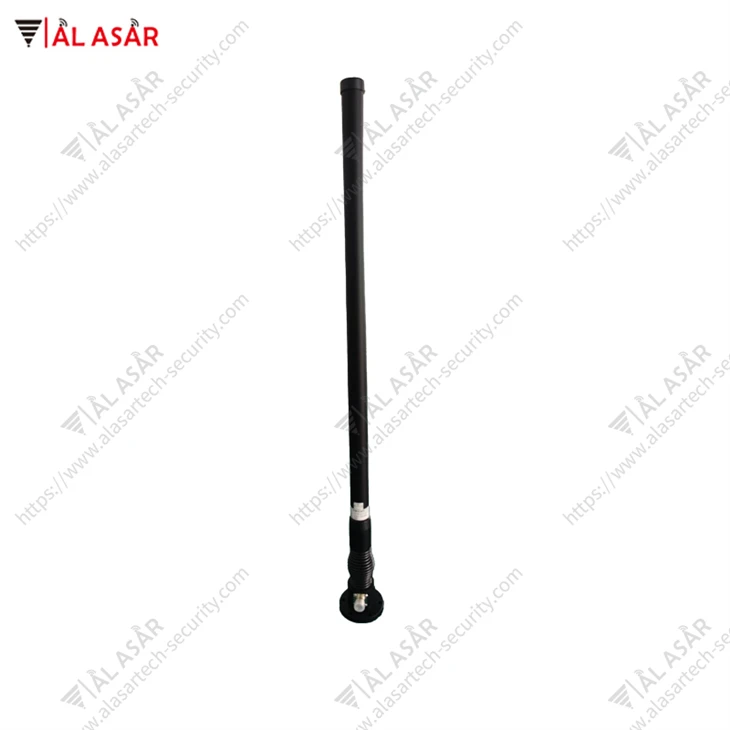

Product Introduction
GSM spring omnidirectional antenna is an antenna for GSM (Global System for Mobile Communications) network. It is designed to provide uniform signal coverage within 360 degrees, so that signals can be received in all directions.
Main features
Omnidirectional coverage: The antenna provides omnidirectional (360 degrees) signal coverage in the horizontal plane, ensuring that the signal strength is basically consistent in any direction.
Spring design: The spring structure not only increases the mechanical strength and durability of the antenna, but also buffers external impact to a certain extent, reducing the risk of damage.
Advantages
Strong reliability: The spring structure enhances the impact resistance and service life of the antenna.
Uniform coverage: The omnidirectional design ensures consistent signal strength in all directions, suitable for occasions requiring wide area coverage.
Performance of electricity index
|
model |
AAT BLG 0809V6TF |
|
Frequency Range (MHz) |
850~960 |
|
Bandwidth (MHz) |
110 |
|
gain (dBi) |
8 |
|
radiation direction |
360° omnidirectional |
|
Polarization mode |
perpendicular |
|
voltage standing-wave ratio |
≤2 |
|
input impedence (Ω) |
50 |
|
maximum power (W) |
100 |
mechanical behavior
|
Port |
N female |
|
Antenna length (mm) |
φ32×850 |
|
Antenna weight (kg) |
1.5 |
|
Cover material |
Fiberglas (matte black) |
|
working temperature (℃) |
-40～85 |
|
Ultimate wind speed (m/s) |
60 |

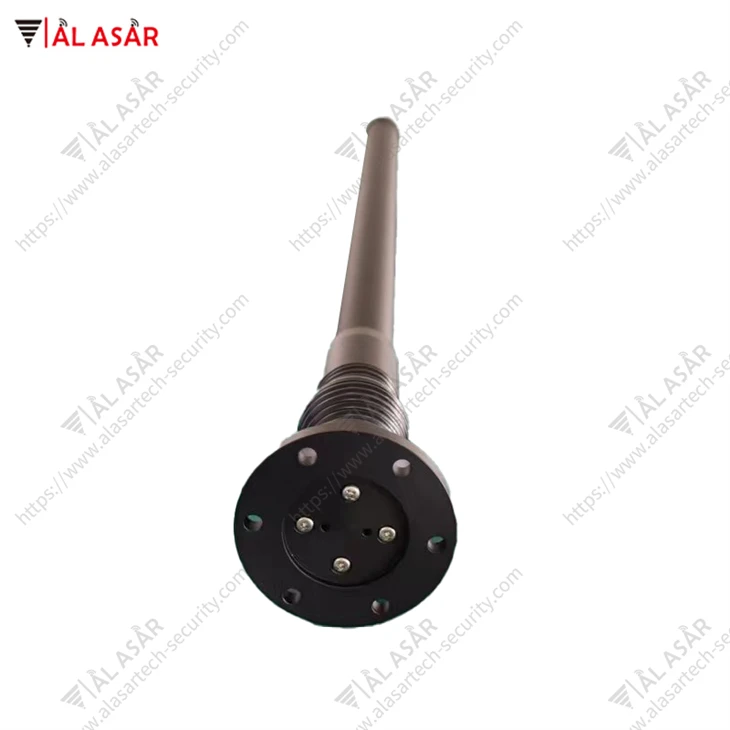

Installation hole size
Application scenarios
Strong reliability: The spring structure enhances the impact resistance and service life of the antenna.
Uniform coverage: The omnidirectional design ensures consistent signal strength in all directions, suitable for occasions requiring wide area coverage.
